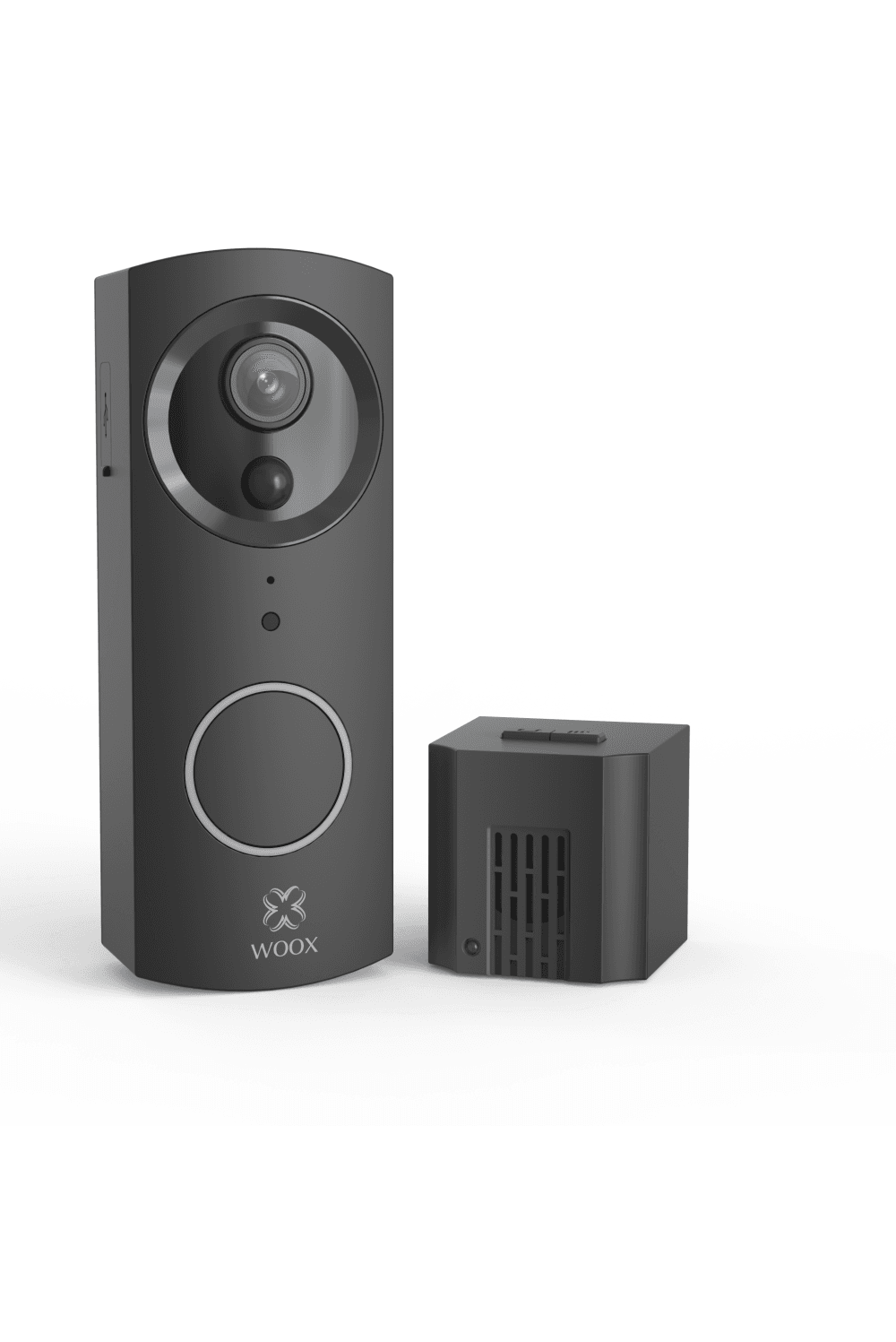

The WOOX Smartvideo Doorbell & Chime is an internet (Wi-Fi) connected doorbell that notifies the user by the WOOX Home app or indoorbell (chime) when a visitor arrives at the door. It activates when the visitor presses the button of the doorbell. The  WOOX Home smart video doorbell lets the home owner use the WOOX Home app to watch and talk with the visitor by using the doorbell's built-in high-definition infrared camera, microphone and speaker.


It is a battery powered video doorbell including 2 pieces type 18650 rechargable batteries of 2600mAh each. Once fully charged the batteries can last between 3 months to 6 months depending on the amount of interaction like the PIR sensor settings and alerts and the amount of recordings saved by the doorbell. Once the battery goes down the 10% level user will get an alarm alert so the doorbell can be charged on time, charging is done by using the supplied Micro USB to USB cable.


No Subscriptions, No Separate Hub

Run the WOOX smart video doorbell & chime through your existing home Wi-Fi network with no need for a separate hub or paid subscription service, set up is easy as 1,2,3.

Echoshow and Nest Hub support

The WOOX R9061 Smart Video Doorbell & Chime works with Amazon Echo Show & Google Nest Hub

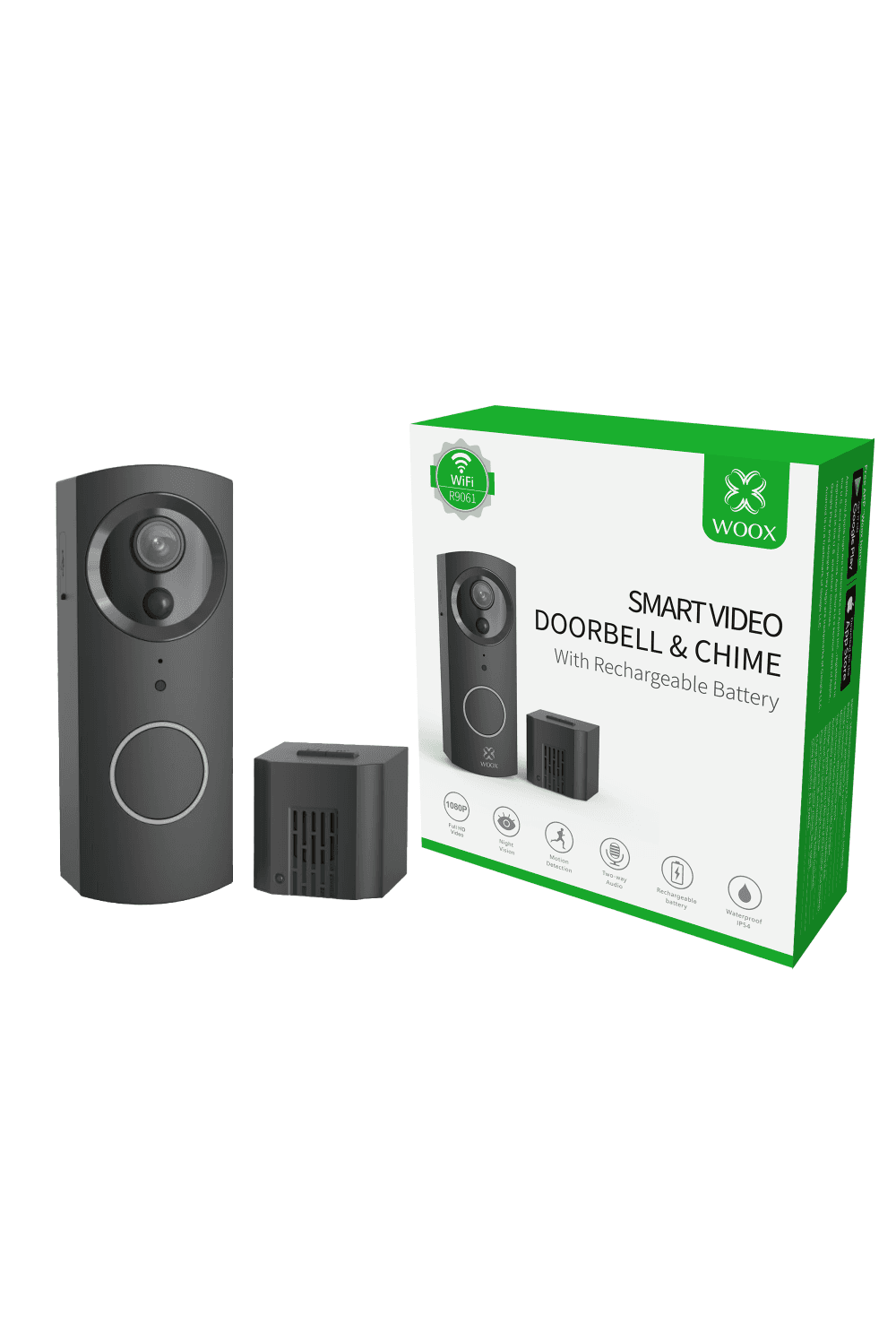

Package includes:

Smart video doorbell x 1
Indoor chime unit x 1
Reset pin x 1
Screws and wall plugs x 5
Grub screw x 4
L shaped screw driver x 1
2600mAh Lithium-ion battery x 2
USB cable x 1






  • Wireless protocol: WiFi IEEE 802.11 b/g/n 2.4GHz
  • Max. Transmision Power: 11.87 dBm
  • WIFI Distance: 70M at open space,15M across the wall
  • Battery:  2600mAh lithium battery X 2, rechargeable. (included)
  • Battery lifetime: approximate 3-6 months.
  • Camera resolution: 1920x1080P.
  • Motion Detection: Yes with notification alerts.
  • Image Sensor: 1/2.9”CMOS for 1080P
  • Processor: HI3518E
  • Lens: 4mm 4 Glass
  • Visual Angle: DFOV 120°
  • IR LED: 6pcs IR leds
  • Night vision: Automatically switches to night vision when lighting is dim, distance: 5 meter
  • Upgrade Support: OTA or update firmware by Micro SD card
  • Talk: with two-way audio with built-in Mic & Speaker.
  • MIC Built in: -38db mic
  • Speaker Built in: 8Ω/1w speaker
  • Video Compression: H.264
  • Notification Precision: rate>98%
  • Remote Wakeup: in 5sec
  • Motion Detection PIR: 6M distance
  • PIR: High/Middle/Low/Close 4 levels
  • Storage Temperature: -20~60
  • Working Temperature: -20 ~55
  • Dimensions: Height: 135mm, Widht: 50mm Depth: 33.5mm
  • Net Weight: 128g
  • Waterproof: IP54
  • Storage: Supports SD card 128G max (FAT32 format, not included).
  • Video streaming: Works with Echo show and Google nest hub.
  • Chime: Plug-in Chime with 36 selectable Ring Tones (included).
  • Chime volume: 4-Level adjustable chime volume: 30 to 100dB.
  • Chime frequency: 433. 92MHz.
  • Chime RF433 Distance: 20M indoor
