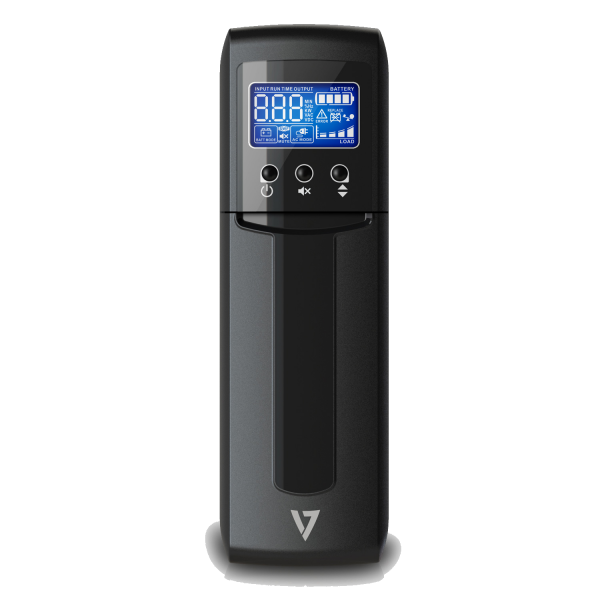

The 1500VA Tower UPS from V7 provides a backup power source for computers, laptops and other powered peripherals. It ensures a consistent flow of electricity to help prevent equipment failure and data loss during power failures, brownouts, or other power issues that can occur with power in your building. The tower design features a quick-access front panel that makes replacing batteries easy, plus its energy efficient. Additionally, it features Auto Voltage Regulation (AVR) to ensure a stable flow of power and a longer life for internal batteries, and it features Audio and visual alarms to keep you aware of status.

SPECIFICATIONS

TECHNICAL

Frequency Range: 60/50 Hz (Auto sensing)

Category: Line Interactive

Data Line Protection: RJ-11, RJ-45 (10/100)

Communication/Configuration Ports: USB

Waveform Type: Simulated Sine Wave

Battery Type: Sealed Lead Acid

Load Capacity Volt Amp (VA): 1500VA

Battery Volt Amp Hour Capacity: 12V9AH x 2 (216)

Backup Runtime: 11 minute half load, 3 minute full load

Audible Alarms: Battery is on, Battery is Low, Overload or Wiring Fault

Input AC Plug Type: BS 1363 (UK), Schuko (EU)

Load Capacity (Watts): 900W

Recharge Time: 6~8 Hours to recover to 90% capacity

Outlets: 8 x IEC C13 (4 battery backup + 4 surge only)

Surge Protection: 316 Joules

Transfer Time: Typical 2-6ms, 10ms max

Noise Level: Less than 40dB

Visual Indicator: LCD: AC Mode, Battery mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault and Low Battery

Voltage: 220/230/240 VAC

AC Cord length: 1.83 m

OTHER

INPUT
Nominal Voltage: 120 VAC
Acceptable Voltage Range: 86-142 VAC

OUTPUT
Output Voltage: 120 VAC
Voltage Regulation (Batt. Mode): ±.5%
Frequency Range (Batt. Mode): 50 Hz or 60 Hz ± 1 Hz

BATTERY
Battery Type: 12 V/9 Ah x 2
Typical Recharge Time: 6~8 hours recover to 90% capacity

INDICATORS
LCD Display: AC Mode, Battery Mode, Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, and Low Battery

PROTECTION
Power: Overload, discharge, and overcharge

ALARM Battery Mode: Sounds every 10 seconds
Low Battery: Sounds every 2 seconds
Overload: Sounds every second
Fault: Continuous alarm

MANAGEMENT
USB: Windows® 2000/2003/XP/Vista 7/8/10, Linux, Unix, and MacOS

PACKAGE DIMENSIONS

Package Dimensions (L/W/H): 7.32 x 19.49 x 14.53 in (186 x 495 x 369 mm)

Package Weight: 28 lbs (12.7 kg)

PRODUCT DIMENSIONS

Product Dim (L/W/H): 3.9 x 16.14 x 11.02 in (99 x 410 x 280 mm)
