TP-Link TL-ER7206

SafeStream Gigabit Multi-WAN VPN Router - A Professional, Secure, and Reliable Gateway with Centralized Management Capability


  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra-convenience and easy management.
  • Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
  • Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
  • Highly Secure VPN: Supports up to 100x LAN-to-LAN IPsec, 50x OpenVPN, 50x L2TP, and 50x PPTP VPN connections.
  • Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data.




Omada SDN - The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, TL-ER7206 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

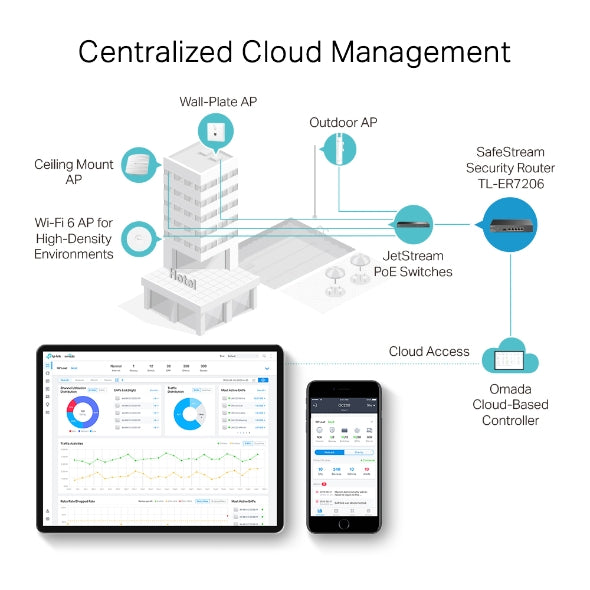

Hassle-Free Centralized Cloud Management
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

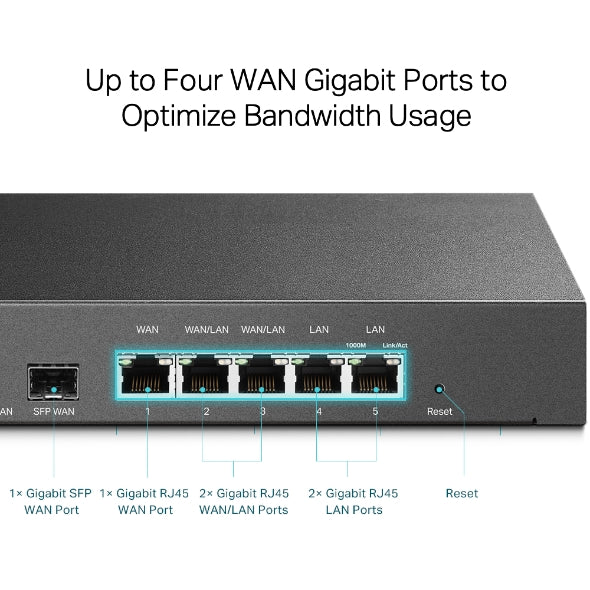

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
One gigabit SFP WAN port, one gigabit RJ45 WAN port, and two freely interchangeable WAN/LAN ports allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

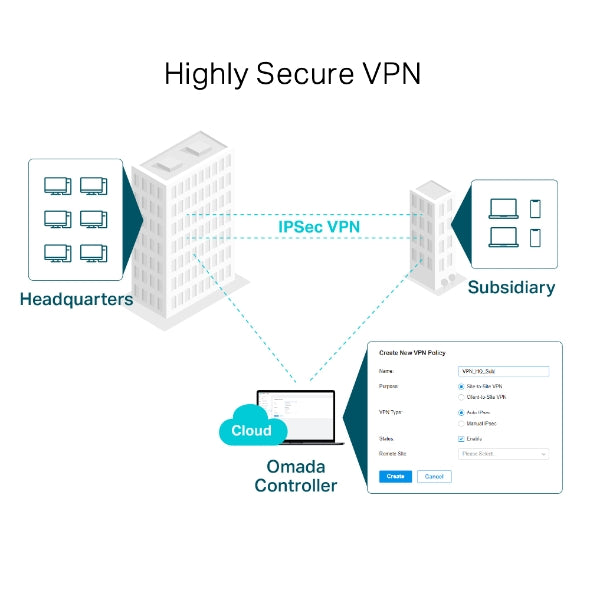

Highly Secure VPN
TL-ER7206 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 100x LAN-to-LAN IPSec, 50x OpenVPN, 50x L2TP, and 50x PPTP VPN connections. One-click auto IPSec VPN greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.

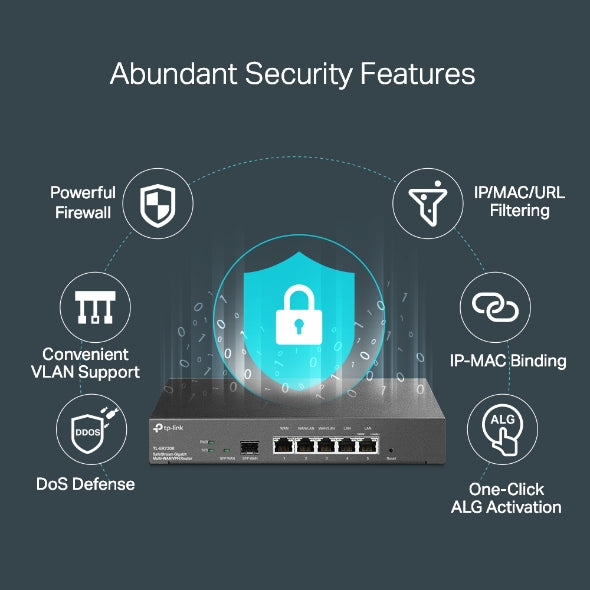

Abundant Security Features

Powerful Firewall
Advanced firewall policies protect your network and data.

Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.

DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

IP/MAC/URL Filtering
Forcefully prevent viruses and attacks from intruders.

IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.

One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPSec and PPTP.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a smart phone or tablet.


Standards: IEEE 802.3, 802.3u, 802.3ab, 802.1z, 802.3x, 802.1q

Interface: 1x SFP WAN, 1x RJ-45 WAN, 2x RJ-45 LAN, 2x RJ-45 WAN/LAN

PoE Support: no

Dimensions: 226 x 131 x 35 mm


Manufacturer:  TP-LINK
Type specification:  Router
Technical specification
Indoor use:  yes
Outdoor use:  no
Display:  no
3G support:  no
4G/LTE support:  no
Network interfaces
LAN:  yes
Gigabit LAN:  yes
Wi-Fi:  no
Port Speed:  1 Gb/s
Standards:  IEEE 802.3, 802.3u, 802.3ab, 802.1z, 802.3x, 802.1q
Inputs and outputs
RJ-45:  5
Card reader
MicroSD card support:  no
Power supply
PoE support:  no
Input voltage (V):  100 - 240
SIM slot:  no
Physical properties
Color:  black
Dimensions:  226 x 131 x 35 mm
