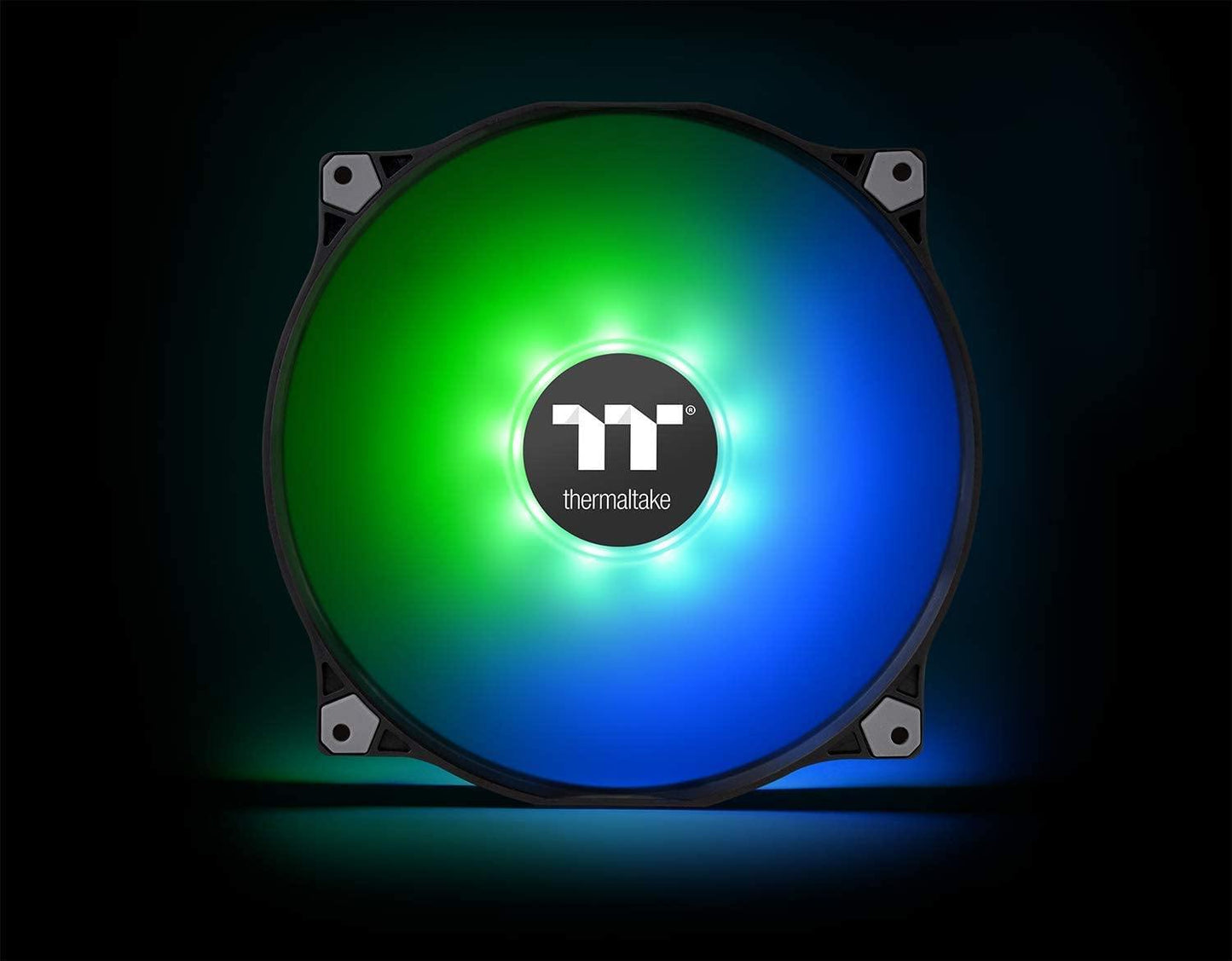

Pure 20 ARGB Sync Case Fan TT Premium Edition(1-Fan Pack)



Thermaltake Pure 20 ARGB Sync Case Fan TT Premium Edition features compression blades,hydraulic bearing,and a 16.8 million colors LED ring with 9 addressable LEDs that is ready to sync with 5V RGB capable motherboards from Asus,Gigabyte,MSI and AsRock.Users can easily switch RGB lighting effects using the ARGB controller that is included in the packet,or by ASUS Aura Sync,GIGABYTE RGB Fusion,MSI Mystic Light Sync and AsRock Polychrome software.Pure 20 ARGB Sync Case Fan delivers 16.8 million-color RGB illumination and unparalleled ventilation.







Sync with Motherboard RGB Software



Designed to synchronize with ASUS Aura Sync,GIGABYTE RGB Fusion,MSI Mystic Light Sync and AsRock Polychrome.It supports motherboards that have a 5V addressable RGB header,allowing you to control the lights directly from the above-mentioned software without installing any extra lighting software or controllers.For more details,please visit ASUS,GIGABYTE,MSI and AsRock official websites.








Switch LED Modes with ARGB Controller



The ARGB controller allows users to switch LED modes,LED colors,and LED Speeds when using a motherboard without a 5V addressable RGB header.Users can switch between flow,ripple,pulse,blink,wave,full light,RGB spectrum,and off modes with various colors and LED speeds options.


*The maximum signal output for one controller is 90 addressable LEDs.





Lights mode







16.8 Million Colors LED Design



Featuring 9 addressable LEDs,great light coverage,and uniform color and brightness,the built-in LED ring can paint your build with 16.8 million colors.







11 Fan Blade Design

200mm fan with unique 11 blades design is engineered to generate higher airflow without compromising on ultra-silent operation.







Hydraulic Bearing with Low-Noise Design



The hydraulic bearing self-lubricates with a high-quality,friction-reducing substance,which lowers operation noise while improving thermal efficiency.The seal cap prevents lubricant leakage and extends the lifespan of the unit.









Anti-Vibration Mounting System



In-mold injection anti-vibration rubber pads provide a hassle-free usage with 80%protection coverage for all corners.









SPECIFICATIONS





FAN DIMENSION



200 x 200 x 30 mm



INTERFACE



Fan 2510-4P , LED 5V RGB Header



FAN STARTED VOLTAGE



9.0 V



FAN RATED VOLTAGE



12 V & 5V



RATED CURRENT



Fan 0.26 A , LED 0.32 A



POWER INPUT



12V – 3.12 W , 5V – 1.6 W



FAN SPEED



500 ~ 1000 R.P.M



MAX. AIR PRESSURE



1.72 mm-H2O



MAX AIR FLOW



129.54 CFM



NOISE LEVEL



31.2 dB-A



BEARING TYPE



Hydraulic Bearing



LIFE EXPECTATION



40,000 hrs,25℃
