13-27" Articulating Quad Monitor Desk Mount Bracket"

  • Apple Pay
  • Google Pay
  • PayPal

The equip® Monitor Desk Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/LED monitor. Follow the graphic guide included in the package, you can install your monitor on your own with ease.

  • Max. Load Capacity: 8Kg (per screen)
  • Max. VESA: 100x100
  • Screen Rotation: 360°
  • Mounting Option: Clamp/Grommet
  • Swivel and Tilt Desk Mount
  • VESA standards compliant
  • Cable clips keep cables organized and protected
  • Both grommet and desk clamp mounting available
  • Freely adjusting height for an optimal ergonomic position


    Approval and compliance RoHS
    Compatible display size 13"-27"
    Material Aluminum, Stainless Steel
    Load capacity (kg) 8kg (per Monitor)
    Mount Desk mount
    Pan (Swivel) range +90° ~ -90°
    No. of supported display 4
    Tilt range +45° ~ -45°
    VESA compatibility 75x75, 100x100

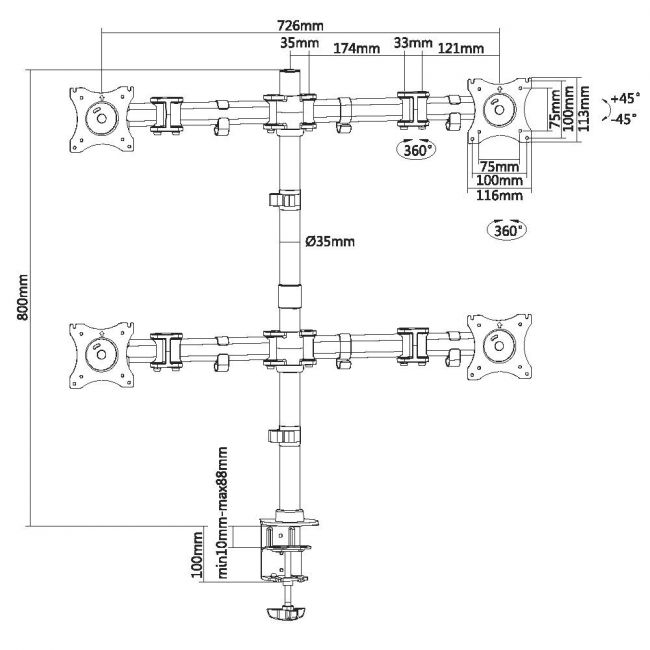

    Product Size 726x116x900mm
    Screen Rotation +180° ~ -180°
    Installation Grommet, Clamp
    Anti-Theft No
    Cable Management No
    Pipe Size (Pole height) 800mm
    Support Curved TV No
    Arm Full Extension 328mm
    Quick Release VESA Plate No
    Suggest Desktop Thickness Clamp: Max.80mm, Grommet: Max.80mm
    Product weight (kg) 7,44
    Product breadth (mm) 726
    Product depth (mm) 116
    Product height (mm) 900
    Color Black

    Model number 650117
    Package contents 650117, Manual, screws.
    TV size 13"-27"
