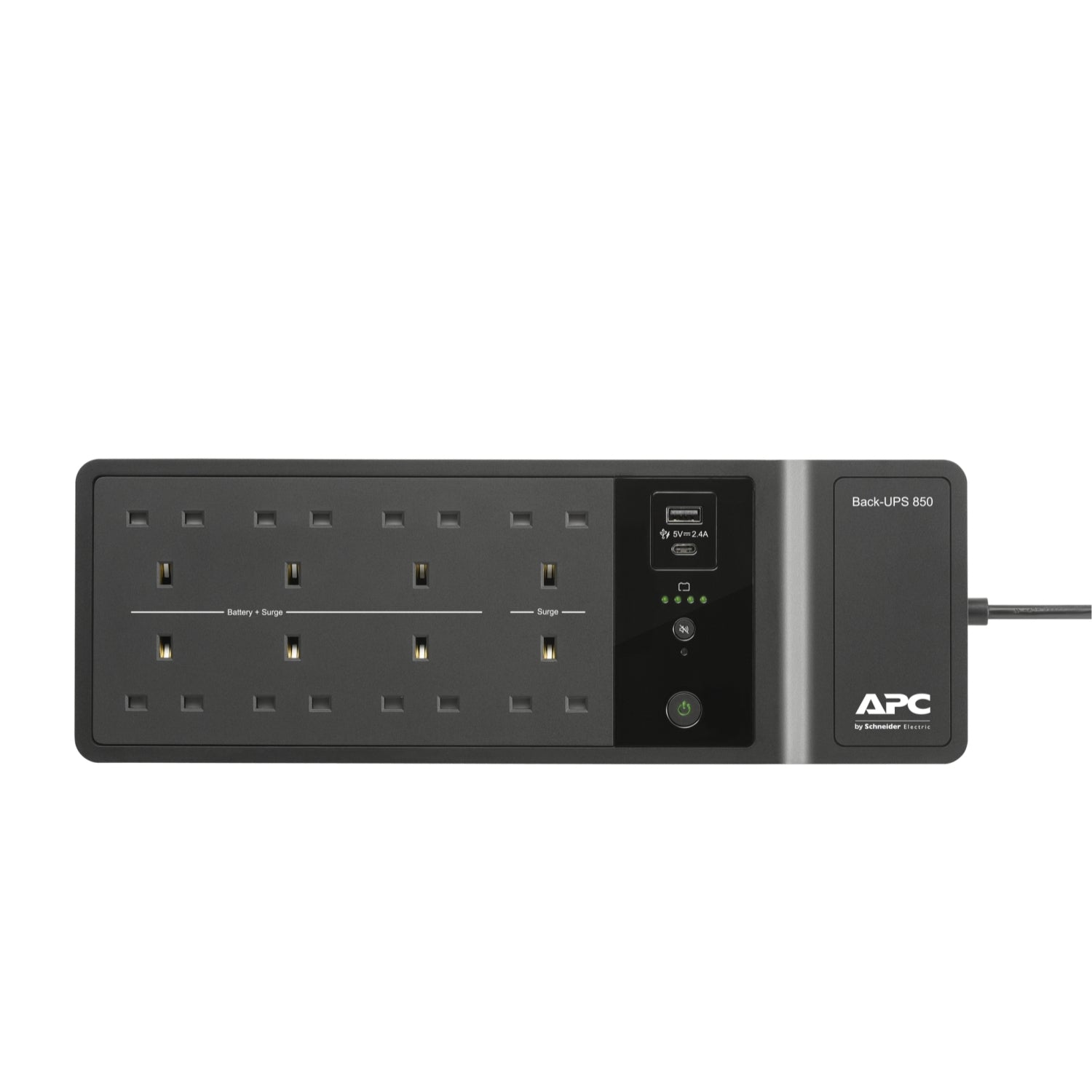

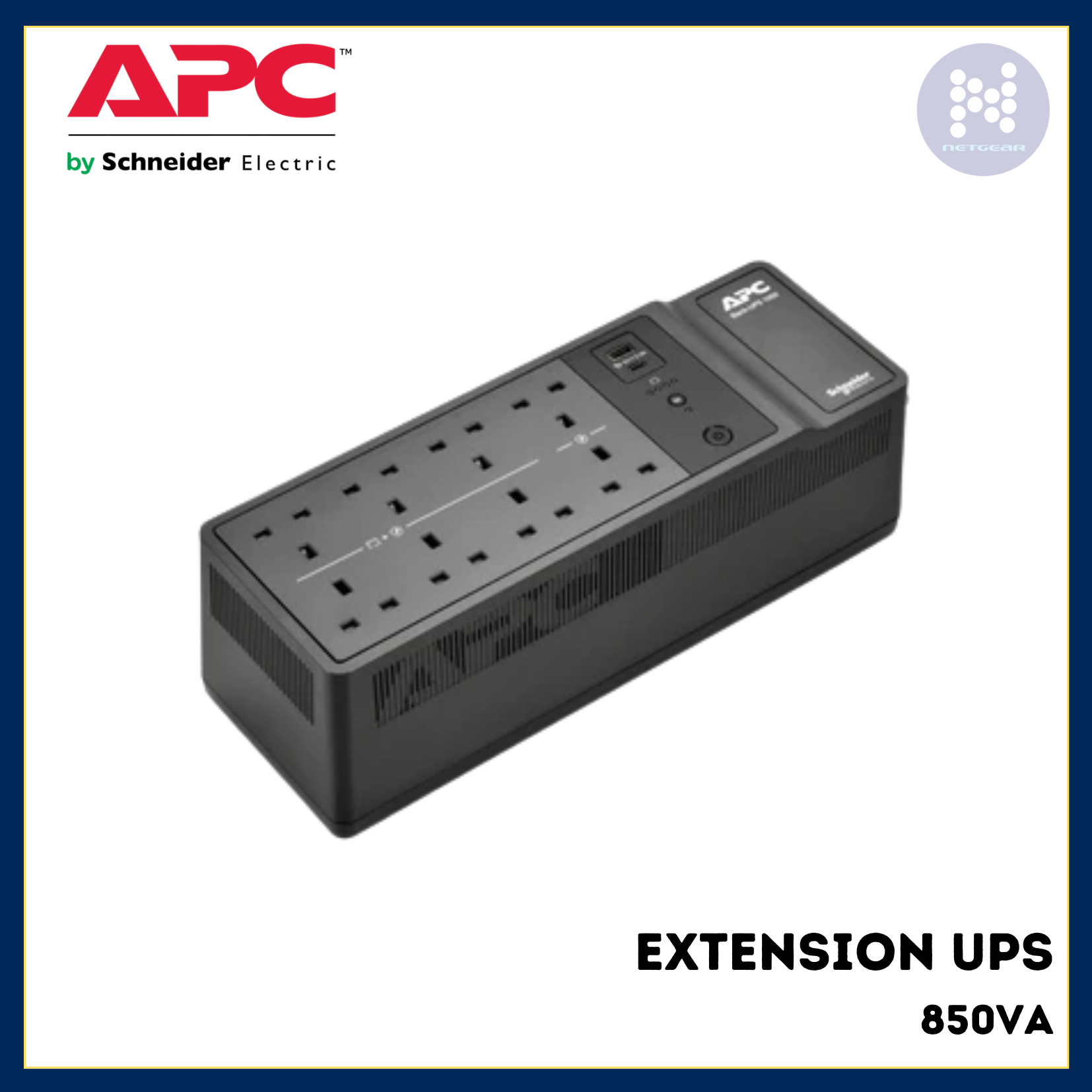

APC BACK-UPS 850VA 8PORT PLUS USB TYPE-C AND A

£159.00
Quantity
  • Apple Pay
  • Google Pay
  • PayPal
Main
Run time for load
W

information_stroke

Min-max: 55-520 W
2min 17s


Max. Capacity Used
information_stroke

100 %


Main Input Voltage 230 V
Main Output Voltage 230 V
Other Output Voltage 220 V
Rated power in W 520 W
Rated power in VA 850 VA
Product or component type Uninterruptible power supply (UPS)
Input Connection Type BS1363A British
output connection type 6 BS 1363
2 BS 1363 surge
Cable length 1.83 m
Battery type Lead-acid battery
Provided equipment User manual
Batteries & Runtime
Run Time View Runtime Graph
action_new_window
Efficiency View Efficiency Graph
action_new_window
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 16 h
Number of battery replacement quantity 1
Battery voltage 12 V
Battery capacity 9.0 Ah
Battery charger power 6 W rated
Battery power in VAH 93 VAh runtime
Battery life 2…5 year(s)
Replacement battery RBC17
action_new_window
Extended runtime 0
General
Number of power module free slots 0
Number of power module filled slots 0
Redundant No
Physical
Colour Black
height 12 cm
Width 13 cm
Depth 36.5 cm
Net weight 4.5 kg
Mounting preference No preference
Mounting mode Not rack-mountable
Two post mountable 0
USB compatible Yes
Input
Network frequency 47...63 Hz
Input voltage limits 180...266 V
Maximum input current 6 A
Switching current capacity 10 A
Output
Maximum configurable power in W 520 W
Output frequency 47...63 Hz sync to mains
50/60 Hz +/- 1 Hz unsynchronised
UPS type Standby
Wave type Stepped approximation to a sinewave
Efficiency 80 % (full load)
Graph start point 55
Maximum configurable power in VA 850 VA
Transfer time 6 ms typical : 10 ms maximum
Conformance
product certifications CE
EAC
Standards EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Equipment protection policy Lifetime : 50000 GBP
Environmental
ambient air temperature for operation 0…40 °C
Relative humidity 0…90 %
Operating altitude 0...3000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…4572.00 m
Acoustic level 45 dBA
Communications & Management
Control panel LED status display with on line : on battery : replace battery and overload indicators
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rate 310 J
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 19 cm
Package 1 Width 44.1 cm
Package 1 Length 18.6 cm
Package 1 Weight 5 kg
